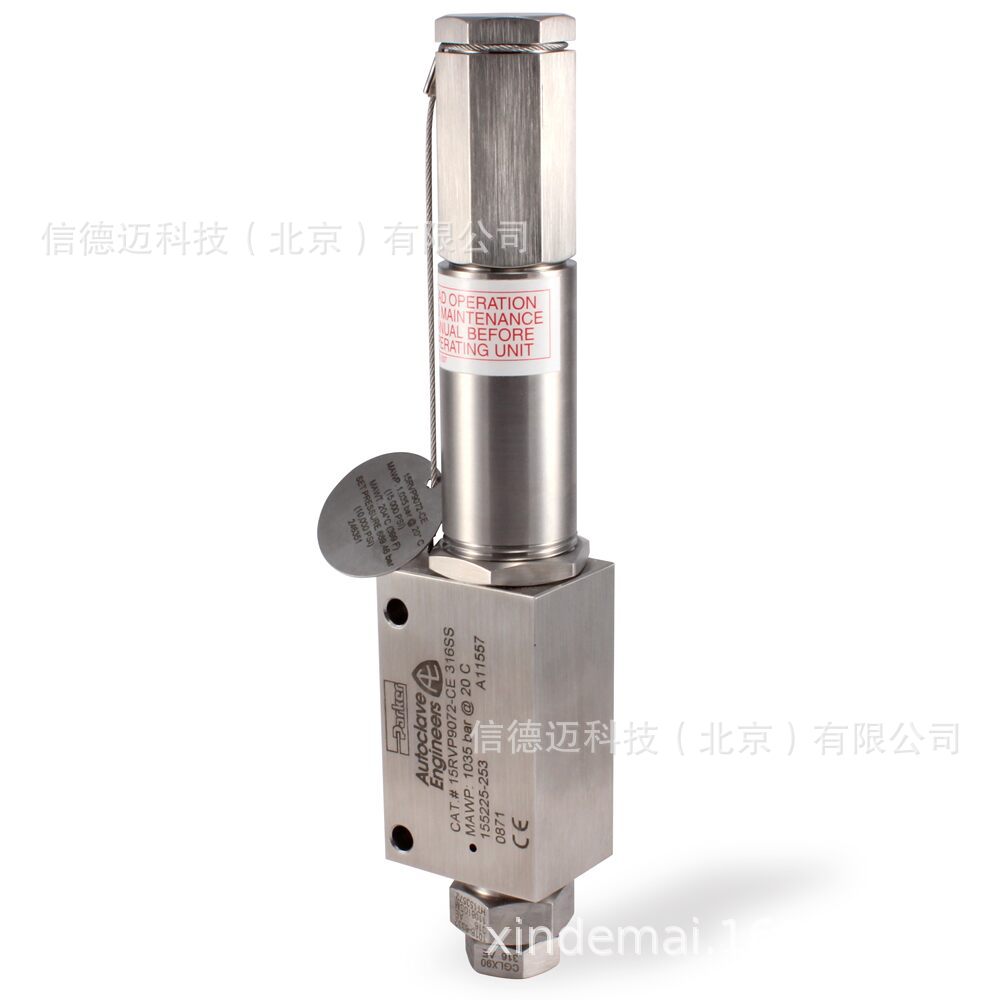

现货Autoclave Engineers安全阀20RVP9072
Relief Valve, RVP Series - 75,000 PSI | #20RVP9072
Parker Autoclave's RVP Series relief valves provide reliable venting of gases for set pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). The valve’s metal seat design provides shut-off of liquids and gases to commercial standards.
Technical Specifications
技术参数
Maximum Operating Temperature (C): 204
Maximum Working Pressure (Bar): 1379
Maximum Operating Temperature (F): 400
Maximum Working Pressure (psi): 20000
Inlet Connection Size: SF562CX
Outlet Connection Size: 3/4" NPT
Orifice Size: 0.156" inch, 3.96 mm
Materials of Construction: 316 Stainless Steel
Minimum Operating Temperature: -252 °C, -423 °F
Maximum Operating Pressure: 20000 psi, 1379 bar
20RVP9072
Autoclave Engineers Medium to High Pressure metal Seat Relief Valve - RVP
Parker Autoclave Engineers metal Seat Relief Valve - RVP
Manufacturer Parker
Part Number 20RVP9072
20RVP9072
metal-Seat Relief Valve
SKU: 20RVP9072 Categories: Parker Autoclave Engineers, AE Relief Valves Tags: Parker Autoclave Engineers, Relief Valves
Parker Autoclave's RVP Series relief valves are designed with a metal seat design for reliable venting of gases at set pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). The operating temperature range is -423°F (-252°C) to 400°F (204°C).These precision relief valves are designed for thermal expansion or low volume relief applications at high pressures where flow is not critical. Thus, liquid curves for these models are not shown in the catalog
Parker Autoclave can supply various inlet and outlet connections on special order. A high temperature option is also available for temperatures to 750°F (399°C) for RVP models. To specify high temperature option: Add suffix “HT” for 750°F (399°C) high temperature option.
Caution:
1. AE relief valves are preset and factory sealed. Warranty is voided if seal is broken by customer.
2. Maximum system operating pressure should not exceed 90% of relief valve set pressure.
Markets:
? Oil and Gas
? Petrochemical
? Chemical
? Research
Features/Benefits:
? Standard models of Relief Valves are constructed of 316 stainless steel with selected components made of anti-galling stainless steel material for optimum economy and ruggedness.
? Designed with 3/8” and 5/16” Parker Autoclave high pressure inlet connections. The outlet connection on all models is a female 3/4” NPT. While adapters to other sizes and connection types are available, they must be sized for specific flow requirements.
? Orifice diameters range from .062 (1.57mm) to .312” (7.92mm).
? Designed to open as a function of increasing system pressure. Proper spring selection assures repeatability of opening, full lift and flow, and reseat pressures.
? Materials engineering and stringent quality control procedures combine to assure the highest quality, reliability and service life. Each valve is preset and factory sealed to ensure proper valve operation.
? Unique seat construction plus over-the-nozzle guiding and proper selection of materials permits standard set pressures to 75,000 psi. (5171 bar)
? Designed to provide bubble tight shut off of gases.
? Engineered to perform with fewer basic components, RVS valves facilitate minimum stocking of spare parts and ease of maintenance
? Available with CE Mark. SOG option available upon request.
Applications:
? Pressure Gas Systems
? Cryogenic systems
? Steam Handling Systems
? Medium Pressure Fluid Handling Systems
