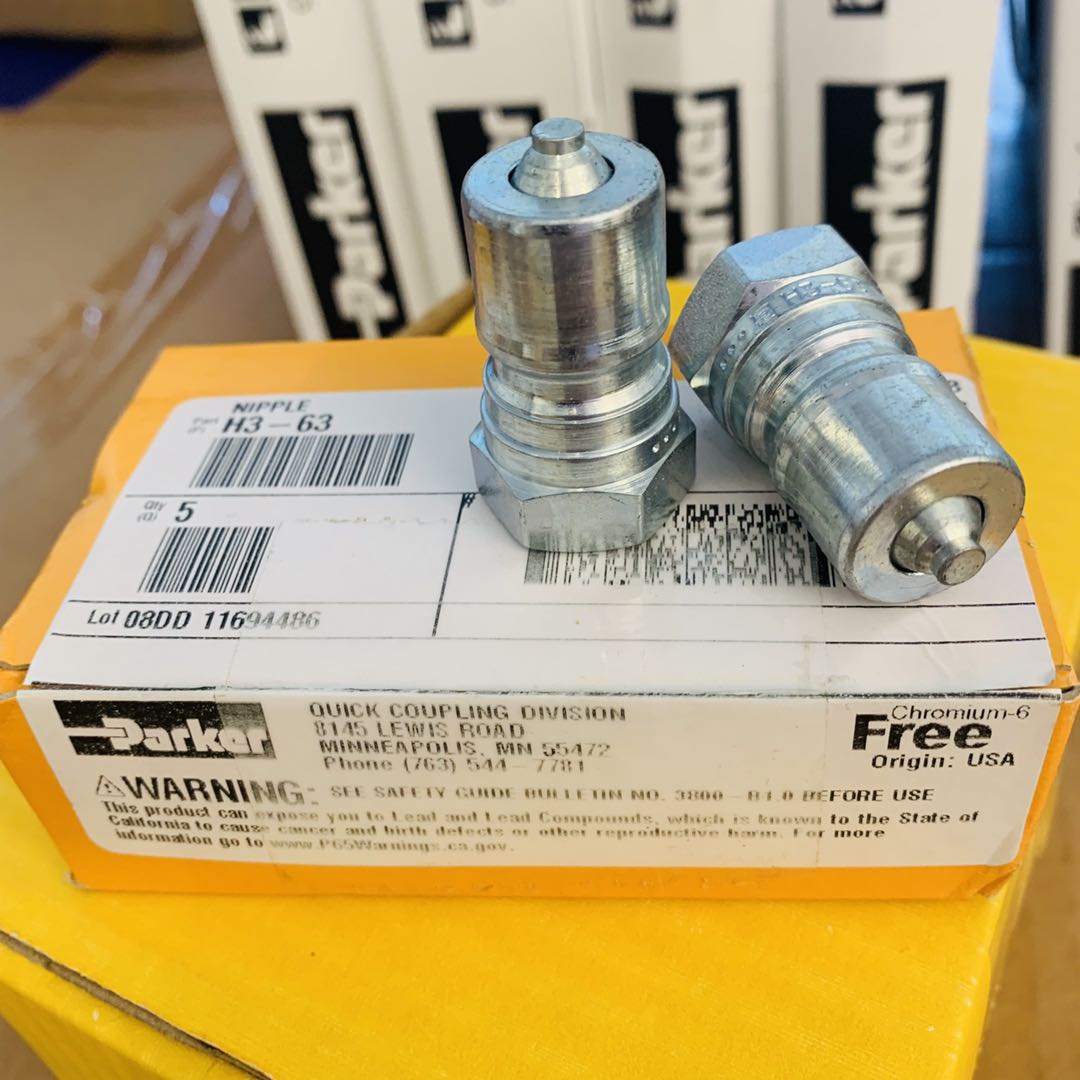

现货 H3-63快速接头 Parker
Hydraulic quick coupler set ISO-7241-B 3/8" NPT interchanges with H3-62/H3-63
Hydraulic Coupler, Male, 3/8 In by Parker
Parker Hydraulics H3-63 60 Series 3/8"
Parker - H3-63 - Nipple 3/8"
Hydraulic Quick Coupler, Coupler Male Half, Pipe Size NPT 3/8 In., Max. Pressure (PSI) 4000, Flow Rate (GPM) 6, Temp. Range (F) -40 to 250, Steel Body Material, Stainless Bearings, Buna-N Seal Material, Poppet Valve Design, Ball Locking Mechanism, Chromium 6 Free Finish, Parker 60 Series, For Use With ISO 7241-1 Series B Coupler, ISO 7241-1 Series B Standards
Thread 3/8"
Length 63mm
Continuous Pressure Bar 275
Rated Flow 25 l/m
