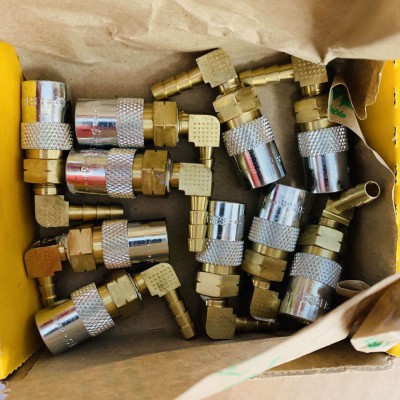

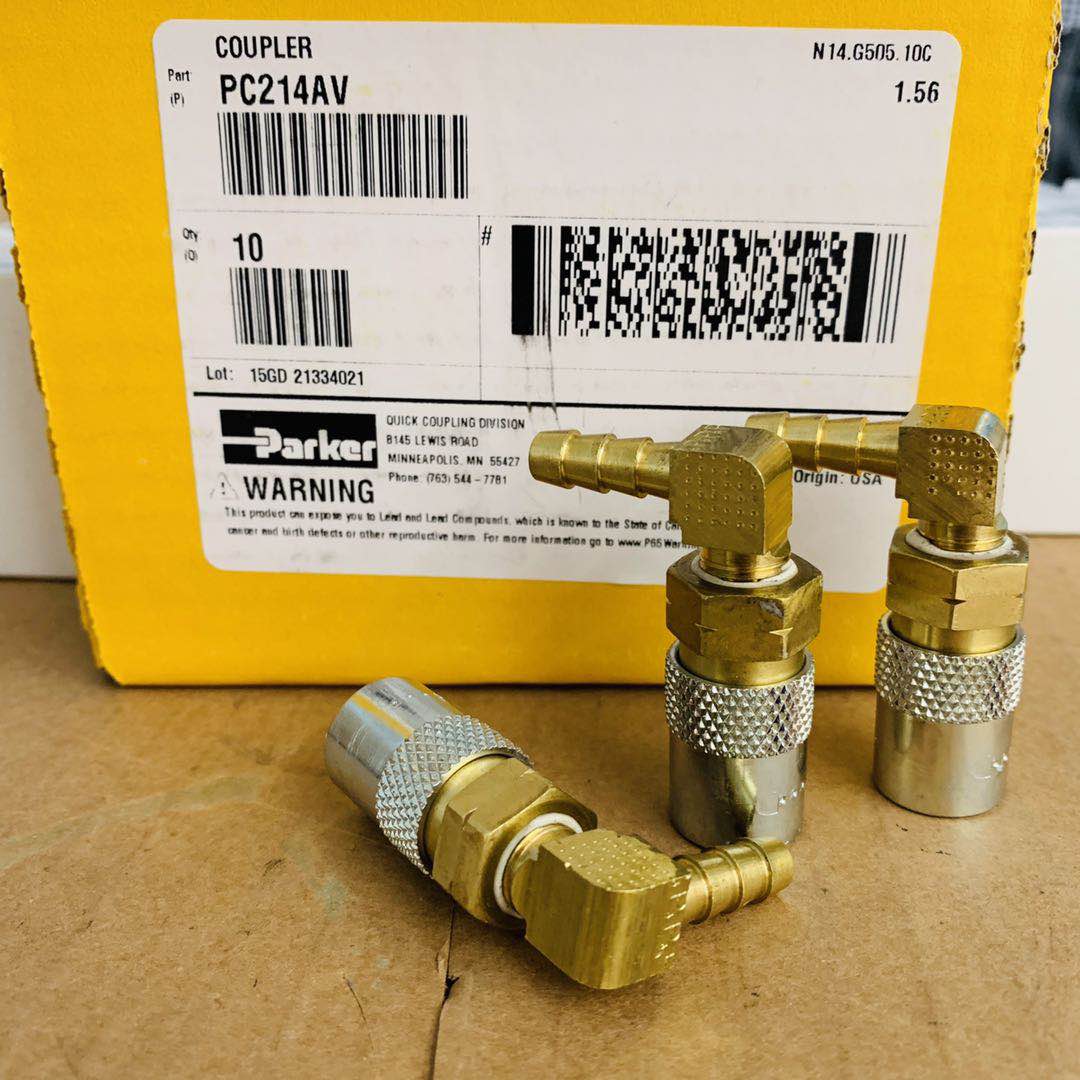

Parker MOLDMATE系列快换接头 PC214AV
MOLDMATE系列快换阴接头-模具冷却用，尾端连接为带角度的宝塔软管接头,承压(水,油,冷却液) 200 PSI
派克模具冷却用快换阴接头以及阳接头是为模具更换的低压流体管路设计的，能够实现管路快速简单地进行连接以及断开。
Moldmate 系列快换阴接头，承压（水，油，冷却液）可达 200 psi ，能与 Moldmate 系列阳接头配合连接。
派克 Moldmate 系列，使用带阀或者不带阀形式，设计用于将低压冷却液管路连接到注塑机械的模具和压铸设备上。阴接头的设计上，使用氟橡胶与锥阀进行密封，可以用于带阀或者不带阀的阳接头进行连接。阴接头以及阳接头有多种，尺寸，材料，以及连接形式可选，可与模具系统相连接。
技术特点：
• 尺寸范围：1/4”, 3/8", 1/2”
• 材料：黄铜
• 尾端连接：Push-Lok 宝塔软管接头，标准宝塔软管接头
• 接口密封选项：硅树脂，碳氟化合物
• 其他阴接头选项包括：直通，45度，90度软管宝塔
市场：
• 工业压铸
• 注塑
特点/优点：
• 带阀的阴接头使用银色套筒，便于目视识别
• 氟橡胶连接密封，可用于石油基液体
• 标准及Push-Lok软管接头，目前可供直通，45°，90° 形状
• 带阀的阴接头目前可与带阀或者不带阀阳接头配合连接
应用：
• 模具冷却回路
• 压铸机
性能特点
主体尺寸
1/4, 3/8, 1/2 inch
MAX.运行压力
200 psi
14 bar
应用
Mold coolant
品牌
Parker
配件连接类型
Female Thread, Male Thread, Hose Barb
结构材料
Brass
MAX.运行温度
204 °C
400 °F
真空额定压力
No
阀门类型
Poppet, No Valve
流速
3 至 12 Gal/min
介质
液压，低压
半联轴器
阴接头
MIN.运行温度
-20 至 -15 °F
密封材料
硅胶，硅胶 - 碳氟化合物
镀层类型
套筒使用三价铬镀锌
套管类型
操作手册
锁具类型
锁止钢球
Part Body Size (inch) Valve Style Connection Hose I.D. (inch) Connection Type
PC204 1/4 Unvalved 1/4 Hose barb
PC204-BP 1/4 Unvalved 1/4 Push-Lok hose barb
PC204AV 1/4 Poppet 1/4 Hose barb
PC204AV-BP 1/4 Poppet 1/4 Push-Lok hose barb
PC205 1/4 Unvalved 5/16 Hose barb
PC205AV 1/4 Poppet 5/16 Hose barb
PC206 1/4 Unvalved 3/8 Hose barb
PC206-BP 1/4 Unvalved 3/8 Push-Lok hose barb
PC206AV 1/4 Poppet 3/8 Hose barb
PC206AV-BP 1/4 Poppet 3/8 Push-Lok hose barb
PC214 1/4 Unvalved 1/4 Hose barb, 90 degree
PC214-BP 1/4 Unvalved 1/4 Push-Lok hose barb, 90 degree
PC214AV 1/4 Poppet 1/4 Hose barb, 90 degree
PC214AV-BP 1/4 Poppet 1/4 Push-Lok hose barb, 90 degree
PC215 1/4 Unvalved 5/16 Hose barb, 90 degree
PC215AV 1/4 Poppet 5/16 Hose barb, 90 degree
PC216 1/4 Unvalved 3/8 Hose barb, 90 degree
PC216-BP 1/4 Unvalved 3/8 Push-Lok hose barb, 90 degree
PC216AV 1/4 Poppet 3/8 Hose barb, 90 degree
PC216AV-BP 1/4 Poppet 3/8 Push-Lok hose barb, 90 degree
PC224 1/4 Unvalved 1/4 Hose barb, 45 degree
PC224-BP 1/4 Unvalved 1/4 Push-Lok hose barb, 45 degree
PC224AV 1/4 Poppet 1/4 Hose barb, 45 degree
PC224AV-BP 1/4 Poppet 1/4 Push-Lok hose barb, 45 degree
PC226 1/4 Unvalved 3/8 Hose barb, 45 degree
PC226-BP 1/4 Unvalved 3/8 Push-Lok hose barb, 45 degree
PC226AV 1/4 Poppet 3/8 Hose barb, 45 degree
PC226AV-BP 1/4 Poppet 3/8 Push-Lok hose barb, 45 degree
PC306 3/8 Unvalved 3/8 Hose barb
PC306-BP 3/8 Unvalved 3/8 Push-Lok hose barb
PC306V 3/8 Poppet 3/8 Hose barb
PC306V-BP 3/8 Poppet 3/8 Push-Lok hose barb
PC308 3/8 Unvalved 1/2 Hose barb
PC308-BP 3/8 Unvalved 1/2 Push-Lok hose barb
PC308V 3/8 Poppet 1/2 Hose barb
PC308V-BP 3/8 Poppet 1/2 Push-Lok hose barb
PC316 3/8 Unvalved 3/8 Hose barb, 90 degree
PC316-BP 3/8 Unvalved 3/8 Push-Lok hose barb, 90 degree
PC316V 3/8 Poppet 3/8 Hose barb, 90 degree
PC316V-BP 3/8 Poppet 3/8 Push-Lok hose barb, 90 degree
PC318 3/8 Unvalved 1/2 Hose barb, 90 degree
PC318-BP 3/8 Unvalved 1/2 Push-Lok hose barb, 90 degree
PC318V 3/8 Poppet 1/2 Hose barb, 90 degree
PC318V-BP 3/8 Poppet 1/2 Push-Lok hose barb, 90 degree
PC326 3/8 Unvalved 3/8 Hose barb, 45 degree
PC326-BP 3/8 Unvalved 3/8 Push-Lok hose barb, 45 degree
PC326V 3/8 Poppet 3/8 Hose barb, 45 degree
PC326V-BP 3/8 Poppet 3/8 Push-Lok hose barb, 45 degree
PC328 3/8 Unvalved 1/2 Hose barb, 45 degree
PC328-BP 3/8 Unvalved 1/2 Push-Lok hose barb, 45 degree
PC328V 3/8 Poppet 1/2 Hose barb, 45 degree
PC328V-BP 3/8 Poppet 1/2 Push-Lok hose barb, 45 degree
PC504 1/2 Unvalved 1/2 Hose barb
PC504-BP 1/2 Unvalved 1/2 Push-Lok hose barb
PC506 1/2 Unvalved 3/4 Hose barb
PC506-BP 1/2 Unvalved 3/4 Push-Lok hose barb
PC514 1/2 Unvalved 1/2 Hose barb, 90 degree
PC514-BP 1/2 Unvalved 1/2 Push-Lok hose barb, 90 degree
PC516 1/2 Unvalved 3/4 Hose barb, 90 degree
PC516-BP 1/2 Unvalved 3/4 Push-Lok hose barb, 90 degree
PC524 1/2 Unvalved 1/2 Hose barb, 45 degree
PC524-BP 1/2 Unvalved 1/2 Push-Lok hose barb, 45 degree
PC526 1/2 Unvalved 3/4 Hose barb, 45 degree
PC526-BP 1/2 Unvalved 3/4 Push-Lok hose barb, 45 degree
