首页 > 供应产品 > 代理Deublin杜博林9000系列高温蒸汽和热油旋转接头

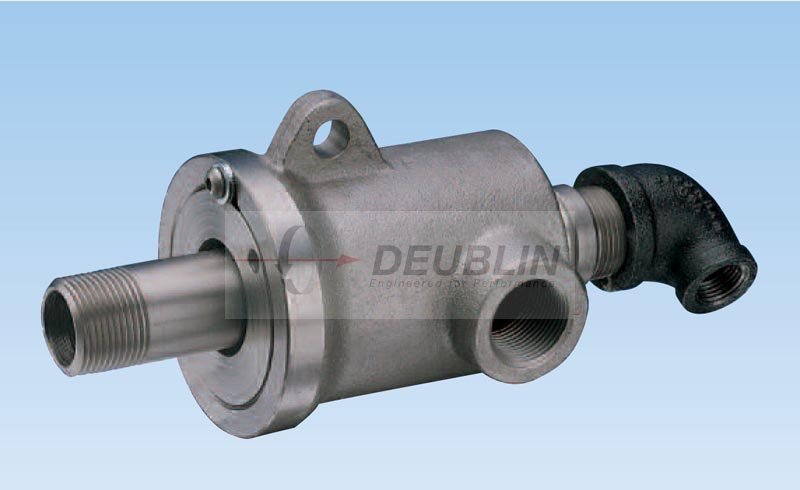

代理Deublin杜博林9000系列高温蒸汽和热油旋转接头
点击图片查看原图
产品： 浏览次数：54代理Deublin杜博林9000系列高温蒸汽和热油旋转接头
品牌： Deublin
材质： 不锈钢
品牌： deublin
单价： 面议
最小起订量：
供货总量：
发货期限： 自买家付款之日起 3 天内发货
有效期至： 长期有效
最后更新： 2019-10-09 15:22
  询价
详细信息


Deublin 9000系列杜博林高温蒸汽和热油旋转接头
Deublin 9000 Series Steam and Hot Oil Union
特点：
—— 单通道与双通道设计
—— 自带支撑旋转接头
—— 球面碳石墨密封
—— 密封磨损划痕指示可实现预防性维护
—— 壳体带有2个防转凸缘
—— 镀镍铸铁壳体
—— 钢转体、镀镍的转体用语蒸汽应用

Hose
Connection
Port Ordering Number
Standard E.L.S. Rotor Thread
3/4" NPT 9075-001-106   3/4" NPT RH
9075-001-107   3/4" NPT LH
9075-001-117   QUICK CONNECT
9075-020-124   3/4" NPT RH
9075-020-125   3/4" NPT LH
9075-020-128   QUICK CONNECT
G 3/4" (BSP) 9075-029-110   G 3/4" (BSP) RH
9075-029-111   G 3/4" (BSP) LH
9075-030-126   G 3/4" (BSP) RH
9075-030-127   G 3/4" (BSP) LH
1" NPT 9100-001-103   1" NPT RH
9100-001-109   1" NPT LH
9100-001-121   QUICK CONNECT
9100-001-121   QUICK CONNECT
9100-020-213   QUICK CONNECT
9100-020-213   QUICK CONNECT
9100-020-220   1" NPT RH
9100-020-221   1" NPT LH
G 1" (BSP) 9100-027-112   G 1" (BSP) LH
9100-027-113   G 1" (BSP) RH
9100-045-211   G 1" (BSP) RH
9100-045-212   G 1" (BSP) LH
1 1/4" NPT 9125-001-109   1 1/4" NPT RH
9125-001-110   1 1/4" NPT LH
9125-001-126   QUICK CONNECT
9125-020-139   1 1/4" NPT RH
9125-020-140   1 1/4" NPT LH
9125-020-141   QUICK CONNECT
G 1 1/4" (BSP) 9125-015-118   G 1 1/4" (BSP) RH
9125-015-119   G 1 1/4" (BSP) LH
9125-030-137   G 1 1/4" (BSP) RH
9125-030-138   G 1 1/4" (BSP) LH
1 1/2" NPT 9150-001-103   1 1/2" NPT RH
9150-001-104   1 1/2" NPT LH
9150-001-117   QUICK CONNECT
9150-001-117   QUICK CONNECT
9150-020-195   1 1/2" NPT RH
9150-020-196   1 1/2" NPT LH
9150-020-199   QUICK CONNECT
9150-020-199   QUICK CONNECT
G 1 1/2" (BSP) 9150-018-113   G 1 1/2" (BSP) RH
9150-018-114   G 1 1/2" (BSP) LH
9150-031-197   G 1 1/2" (BSP) RH
9150-031-198   G 1 1/2" (BSP) LH
2" NPT 9200-001-102   2" NPT RH
9200-001-111   2" NPT LH
9200-001-121   QUICK CONNECT
9200-001-121   QUICK CONNECT
9200-020-112   2" NPT RH
9200-020-113   2" NPT LH
9200-020-122   QUICK CONNECT
9200-020-122   QUICK CONNECT
G 2" (BSP) 9200-029-117   G 2" (BSP) RH
9200-029-118   G 2" (BSP) LH
9200-030-119   G 2" (BSP) RH
9200-030-120   G 2" (BSP) LH

DEUBLIN 9000系列蒸汽与热油应用接头 9000 Series Steam and Hot Oil Union

Deublin 9000 Series Steam and Hot Oil Union

monoflow and duoflow design
self-supported rotating union
spherical Carbon Graphite seal
seal wear indicator allows preventive maintenance
2 torque lugs on the housing
nickel-plated cast iron housing
steel rotor, nickel-plated for steam service





特点：
—— 单通道与双通道设计
—— 自带支撑旋转接头
—— 球面碳石墨密封
—— 密封磨损划痕指示可实现预防性维护
—— 壳体带有2个防转凸缘
—— 镀镍铸铁壳体
—— 钢转体、镀镍的转体用语蒸汽应用

Maximum Saturated Steam Pressure
Model 9075, 9100, 9125, 9150, 9200
150 psi
Maximum Hot Oil Pressure
Model 9075, 9100, 9125, 9150, 9200
100 psi
Maximum Speed NPT Threads
Model 9075, 9100, 9125, 9150, 9200
400 rpm
Maximum Speed Straight Threads
Model 9075, 9100, 9125, 9150, 9200
400 rpm
Maximum Temperature
Steam

365°F

>365°F consult Deublin

Maximum Temperature
Hot Oil

450°F

>450°F consult Deublin


订货型号：
3/4" NPT： 9075-001-106、9075-020-124、9075-001-107、9075-020-125、9075-001-117、9075-020-128
G3/4"(BSP) 9075-029-110、9075-030-126、9075-029-111、9075-030-127
1"NPT: 9100-001-103、9100-020-220、9100-001-109、9100-020-221、9100-001-121、9100-020-213、
G1"(BSP): 9100-027-113、9100-045-211、9100-027-112、9100-045-212
1 1/4"NPT: 9125-001-109、9125-020-139、9125-001-110、9125-020-140、9125-001-126、9125-020-141
G1 1/4"(BSP): 9125-015-118、9125-030-137、9125-015-119、9125-030-138
1 1/2"NPT: 9150-001-103、9150-020-195、9150-001-104、9150-020-196、9150-001-117、9150-020-199、
G1 1/2"(BSP): 9150-018-113、9150-031-197、9150-018-114、9150-031-198
2"NPT: 9200-001-102、9200-020-112、9200-001-111、9200-020-113、9200-001-121、9200-020-122
G2"(BSP): 9200-029-117、9200-030-119、9200-029-118、9200-030-120

Hose
Connection
Port 		Ordering Number
Standard E.L.S. Rotor Thread
3/4" NPT 9075-001-106   3/4" NPT RH
9075-001-107   3/4" NPT LH
9075-001-117   QUICK ConNECT
9075-020-124   3/4" NPT RH
9075-020-125   3/4" NPT LH
9075-020-128   QUICK ConNECT
G 3/4" (BSP) 9075-029-110   G 3/4" (BSP) RH
9075-029-111   G 3/4" (BSP) LH
9075-030-126   G 3/4" (BSP) RH
9075-030-127   G 3/4" (BSP) LH
1" NPT 9100-001-103   1" NPT RH
9100-001-109   1" NPT LH
9100-001-121   QUICK ConNECT
9100-001-121   QUICK ConNECT
9100-020-213   QUICK ConNECT
9100-020-213   QUICK ConNECT
9100-020-220   1" NPT RH
9100-020-221   1" NPT LH
G 1" (BSP) 9100-027-112   G 1" (BSP) LH
9100-027-113   G 1" (BSP) RH
9100-045-211   G 1" (BSP) RH
9100-045-212   G 1" (BSP) LH
1 1/4" NPT 9125-001-109   1 1/4" NPT RH
9125-001-110   1 1/4" NPT LH
9125-001-126   QUICK ConNECT
9125-020-139   1 1/4" NPT RH
9125-020-140   1 1/4" NPT LH
9125-020-141   QUICK ConNECT
G 1 1/4" (BSP) 9125-015-118   G 1 1/4" (BSP) RH
9125-015-119   G 1 1/4" (BSP) LH
9125-030-137   G 1 1/4" (BSP) RH
9125-030-138   G 1 1/4" (BSP) LH
1 1/2" NPT 9150-001-103   1 1/2" NPT RH
9150-001-104   1 1/2" NPT LH
9150-001-117   QUICK ConNECT
9150-001-117   QUICK ConNECT
9150-020-195   1 1/2" NPT RH
9150-020-196   1 1/2" NPT LH
9150-020-199   QUICK ConNECT
9150-020-199   QUICK ConNECT
G 1 1/2" (BSP) 9150-018-113   G 1 1/2" (BSP) RH
9150-018-114   G 1 1/2" (BSP) LH
9150-031-197   G 1 1/2" (BSP) RH
9150-031-198   G 1 1/2" (BSP) LH
2" NPT 9200-001-102   2" NPT RH
9200-001-111   2" NPT LH
9200-001-121   QUICK ConNECT
9200-001-121   QUICK ConNECT
9200-020-112   2" NPT RH
9200-020-113   2" NPT LH
9200-020-122   QUICK ConNECT
9200-020-122   QUICK ConNECT
G 2" (BSP) 9200-029-117   G 2" (BSP) RH
9200-029-118   G 2" (BSP) LH
9200-030-119   G 2" (BSP) RH
9200-030-120   G 2" (BSP) LH
3/4" NPT Download Catalog   3/4" NPT LH
Download Catalog   3/4" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   3/4" NPT LH
Download Catalog   3/4" NPT RH
Download Catalog   QUICK ConNECT
G 3/4" (BSP) Download Catalog   G 3/4" (BSP) LH
Download Catalog   G 3/4" (BSP) RH
Download Catalog   G 3/4" (BSP) LH
Download Catalog   G 3/4" (BSP) RH
1" NPT Download Catalog   1" NPT LH
Download Catalog   1" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   QUICK ConNECT
Download Catalog   1" NPT LH
Download Catalog   1" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   QUICK ConNECT
G 1" (BSP) Download Catalog   G 1" (BSP) LH
Download Catalog   G 1" (BSP) RH
Download Catalog   G 1" (BSP) LH
Download Catalog   G 1" (BSP) RH
1 1/4" NPT Download Catalog   1 1/4" NPT LH
Download Catalog   1 1/4" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   1 1/4" NPT LH
Download Catalog   1 1/4" NPT RH
Download Catalog   QUICK ConNECT
G 1 1/4" (BSP) Download Catalog   G 1 1/4" (BSP) LH
Download Catalog   G 1 1/4" (BSP) RH
Download Catalog   G 1 1/4" (BSP) LH
Download Catalog   G 1 1/4" (BSP) RH
1 1/2" NPT Download Catalog   1 1/2" NPT LH
Download Catalog   1 1/2" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   QUICK ConNECT
Download Catalog   1 1/2" NPT LH
Download Catalog   1 1/2" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   QUICK ConNECT
G 1 1/2" (BSP) Download Catalog   G 1 1/2" (BSP) LH
Download Catalog   G 1 1/2" (BSP) RH
Download Catalog   G 1 1/2" (BSP) LH
Download Catalog   G 1 1/2" (BSP) RH
2" NPT Download Catalog   2" NPT LH
Download Catalog   2" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   QUICK ConNECT
Download Catalog   2" NPT LH
Download Catalog   2" NPT RH
Download Catalog   QUICK ConNECT
Download Catalog   QUICK ConNECT
G 2" (BSP) Download Catalog   G 2" (BSP) LH
Download Catalog   G 2" (BSP) RH
Download Catalog   G 2" (BSP) LH
Download Catalog   G 2" (BSP) RH
